제품 상세 정보:
|
| 무게: | 200g | 전송 속도: | 2400bps/9600bps |
|---|---|---|---|
| 무선 기술: | RF/LORA | 인터페이스: | RS485 |
| 전송거리: | 2KM | 크기: | 100mm x 100mm x 25mm |
| 시그널 타입: | 활성 디지털 입력 | 프로그램: | 그럴 필요 없어 |
| 강조하다: | 8DI8DO Modbus RTU,Advanced RF/Lora Technology Modbus RTU,24V DC Power Supply Modbus RTU |
||

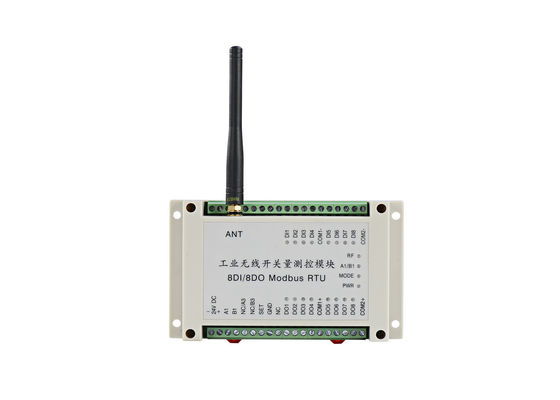

The Wireless I/O Module is a cutting-edge industrial I/O device that offers seamless connectivity and reliable performance for various applications. This versatile module features a range of advanced attributes that make it an ideal choice for industrial automation and control systems.
With selectable Baud Rates of 2400bps and 9600bps, the Wireless I/O Module ensures efficient data transmission and communication in diverse industrial environments. Its robust design and compatibility with Modbus RTU protocol make it suitable for a wide range of industrial settings requiring 8DI8DO functionality.
Operating within a temperature range of -20°C to 70°C, this wireless RTU device is built to withstand harsh environmental conditions, ensuring consistent operation and reliability in demanding industrial applications. Whether in extreme cold or heat, the Wireless I/O Module delivers optimal performance, making it a dependable solution for critical industrial processes.
Equipped with a low power consumption of 1W, the Wireless I/O Module offers energy efficiency without compromising on functionality. This power-efficient design ensures long-term operation and cost-effectiveness for industrial users seeking sustainable solutions for their automation needs.
The Supply Voltage requirement of 24V DC ensures compatibility with standard industrial power sources, making integration seamless and hassle-free. This enables easy deployment of the Wireless I/O Module in various industrial setups, providing flexibility and convenience for users across different industries.
Utilizing advanced Wireless Technology such as RF and Lora, the Wireless I/O Module enables wireless communication for enhanced connectivity and convenience in industrial environments. This wireless RTU capability allows for remote monitoring and control, facilitating efficient operation and management of industrial processes.
In summary, the Wireless I/O Module is a state-of-the-art industrial I/O device that combines the benefits of 8DI8DO Modbus RTU functionality, robust design, wide operating temperature range, low power consumption, and wireless technology. With its versatile features and reliable performance, this module is an indispensable asset for industrial automation systems seeking efficient and effective I/O solutions.
| Parameter | |
| Power output: | 1W or 100mW version |
| Power supply: | 9V-30V (usually choose 24V DC or 12V DC) |
| Control distance: | 3km or (1km version) |
| Baud rate: | 2400bps |
| Receiving sensibility: | -123dBm@1200bps, -118dbm(9600bps) |
| Networking | |
| Networking: | Point to point and point to multipoint |
| Port Description | |
| Input: | 8 active DI (passive customized) |
| Output: |
8 relay passive outputs, contact max load AC250V/5A,DC30V/5A (Active output 0-5V customized) |
| Communication port | RS485 (wireless RS485 customize) |
| Current | |
| Transmit current: | <600mA (or 100mA version) |
| Receiving current: | <50mA (or 20mA version) |
| General | |
| Frequency: | 433MHz, 400, 450, 470 or other band |
| Channel No: | 16 channels, can set via DIP switch |
| Physical Properties | |
| Dimension: | 145×90×40(mm) |
| Antenna Connector: | SMA,vehicle antenna with 1.5m cable |
| Temperature: | -35℃~+75℃( industrial) |
| Mounting method: | Standard 3.5 inch industrial guild rail |
Lensen's Wireless I/O Module is a cutting-edge product designed and manufactured in China, catering to a wide range of industrial applications. With its advanced features and reliable performance, this module is ideal for various product application occasions and scenarios.
One key application scenario for the Wireless I/O Module is I/O mirroring control. This feature allows users to remotely monitor and control input and output signals with ease. Whether it's for industrial automation, remote monitoring, or process control, the Wireless I/O Module provides a seamless solution for I/O mirroring control.
Another common application for this product is as a Remote I/O module. Its wireless technology, including RF and Lora, enables seamless communication over long distances, making it perfect for remote monitoring and control in challenging environments. The module's high baud rates of 2400bps/9600bps ensure fast and efficient data transfer, enhancing the overall performance of the system.
Moreover, the Wireless I/O Module is well-suited for wireless RTU (Remote Terminal Unit) applications. Its wide operating temperature range of -20°C to 70°C ensures reliable operation in harsh industrial environments. Additionally, with a weight of only 200g and a power output of 1W, this module is lightweight yet powerful, making it a versatile solution for various industrial settings.
The Wireless I/O Module product offers comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated team of technical experts is available to assist with any product-related inquiries, troubleshooting, or issues that may arise.
Our services include:
With our commitment to customer satisfaction, you can rely on our Product Technical Support and Services to help you maximize the benefits of your Wireless I/O Module.
